Bevatron and Building
51 Landmark Application |
Bevatron
and Building 51
Landmark Application
City of Berkeley
Landmarks Preservation Commission |
|
- Street Address:
Building 51, One Cyclotron Road, Berkeley, California 94720
- Original owner’s
or business’s name: University of California
Radiation Laboratory (UCRL
Present common name: Building 51 or the Bevatron
- Original owner: University
of California Radiation Laboratory (UCRL)
- Present owner’s name & address: Department of Energy, (situated on University of California land)
- Original use: Synchrotron,
Particle Accelerator
- Present use: Equipment
storage, shop area, offices.
- Is property on any survey? National Register YES, California Register
State Historic Resources Inventory YES, Neighborhood,
Urban Conservation Survey Plan, BAHA Tours, Neighborhood or Area Plan.
- Application for landmark includes: Building(s) YES Other: YES Bevatron Apparatus, interior structure
- Is the property endangered? If yes, please explain: YES, The
Bevatron structure and apparatus are in danger of being demolished.
The Lawrence Berkeley National Laboratory announced in a Draft Environmental
Impact Review was to be circulated for comment from October 21-December
7, 2005. This document is a proposal to demolish Building 51 and the
Bevatron.
- Date of construction: 1949-1954, altered in 1957, 1961, 1965-69, 1980. Factual: YES, Source
of information: HAER – No. CA-186-A
- Architect: Masten
& Hurd (architect), Milton T Pflueger (architect), Huber and Knapik
(structural engineers). Bevatron Atomic Particle Accelerator designed
by William Brobeck, (engineer)
- Style: 20th Century
Industrial (specialized)
- Historic Value: National: YES, State: YES,
County: YES, City: YES,
Neighborhood: YES,
- Architectural Value:
National: YES, State: YES,
County: YES, City: YES,
Neighborhood: YES
- Present Condition of Property: Exterior: Good, Interior: Good
- Survey prepared by: L A Wood & Pamela Sihvola, Date: March 27, 2006
WHAT YOU SHOULD KNOW
The Bevatron, the
largest high-energy accelerator in the world, when it opened
in 1954 at the Lawrence Berkeley National Laboratory (then called
the UC Radiation Laboratory), was declared eligible on December
5, 1995, for listing on the National Register of Historic Places.
On that same date the California State Office of Historic Preservation
listed the Bevatron on the California
Inventory of Historic Places.
The historic importance of this cold-war era architecturally
significant structure, the Bevatron,
renders the idea of its demolition tragic. The Bevatron meets all (3) three criteria for listing eligibility on the
National Register of Historic Places.
Criterion A. By its “significant contribution
to broad patterns of our history”, the Bevatron was among the world’s leading particle accelerators during
the 1950s and 1960s and was considered the most productive accelerator
of its time. It helped establish American leadership in scientific
research with significant contributions in the fields of particle
and nuclear physics. Four Nobel Prizes were awarded for this
research, largely conducted at the Bevatron.
Criterion B. The Bevatron is associated with many significant persons who worked at the Bevatron during the productive
period of their lives. Some spent their entire careers there.
Notably, Emilio Segre and Owen Chamberlain won the Nobel Prize
in 1959 for their discovery of the anti-proton in an experiment
at the Bevatron. Luis Alvarez won
the Nobel Prize in 1968 for his development of the bubble chamber
particle detector and for his role in finding 18 particle resonances
with the LBL bubble chamber used in conjunction with the Bevatron.
Criterion C. The Bevatron “embodies the distinctive characteristics of a type”
of building. That is, it is a distinguished example of a rare
international building type, the accelerator building. The Bevatron possesses the distinguishing characteristics of the type that
“can be expressed in terms such as form, proportion, structure,
plan, style or materials”. The design is a reflection
of the research process in form, materials, structural systems
and plan. The Bevatron illustrates
patterns associated with all accelerator buildings, the individuality
of the particular situation and the evolution of the processes
it was designed to accommodate.
Further, the Bevatron meets Critierion
C in “ representing the work of a master”, i.e.
the architectural firm of Masten and Hurd. At that time they
specialized in large-scale institutional projects, which in
addition to the Bevatron, included
San Francisco’s Hasting College of Law and Warren Hall
on the UC Berkeley campus.
The citations above are from the Dobkin/Corbett Historic Architectural
Evaluation Report prepared in1994 for the Lawrence Berkeley
Laboratory.
|
1. This Landmark Application includes
the following features, pursuant to BMC 3.24.100.A
• Building 51, which includes the Bevatron, is a structure worthy
to be designated as a City of Berkeley landmark. It has special architectural
importance because it was designed to accommodate the largest manmade
machine of its time, a particle accelerator.
• Building 51 is located on a historic scientific site that
also includes the Cyclotron, another historic building that was involved
in cutting-edge particle physics research.
• Building 51 and the Bevatron have very special educational
and cultural value to both the City of Berkeley and the University
of California at Berkeley, where the building is located.
Description
The following comments are an addendum to the Historic American Engineering
Record, PUB-807, HAER No. CA-186-A. This record has been accepted
by the National Parks Service and is now offered as principle documentation
for the City of Berkeley Landmarks Application for Building 51, Bevatron
apparatus and historic setting of the facility and including an addendum
below regarding the history, description, and historic significance.
Please be advised that Lawrence Berkeley National Laboratory, which
occupies Building 51, has offered only limited access to the structure’s
exterior (from afar) and no access to the interior of the building
and Bevatron. The following Landmarks application is based on the
“Historic American Engineering Record (HAER), “Historic
Architectural Evaluation Report of the Bevatron and Bevalac , Lawrence
Berkeley National Laboratory, other publications and the limited site
access noted above, as well as photo documentation.
The description of Building 51 below is an addendum to the Historic
American Engineering Record PUB-807, HAER No. CA-186-A (1997), and
Historic Architectural Evaluation Report of the Bevatron and Bevalac
, Lawrence Berkeley National Laboratory by Marjorie Dobkin and Michael
Corbett (1994). (Please refer to ATTACHMENTS #1 & 4.)
Building 51 is located in the Berkeley Hills, and is part of the laboratory complex of the Lawrence
Berkeley National Laboratory. It was sited on slightly more than two
acres, just below the Cyclotron, which was the first of the Laboratory’s
hill buildings. These two buildings formed the core of the laboratory’s
physics research activities in postwar WWII. The work done at both
laboratory buildings has made this historic site known to many throughout
the world, especially to the scientific community.
One of the most unique aspects of the Building 51 structure is its
design. The building was specifically tailored to house, what was
at that time (1954), the largest manmade machine: a particle accelerator.
As form often follows function, the Building 51 exterior structure
has the parallel shape, footprint and mass as the particle accelerator,
or synchrotron. This has contributed to the symmetry of the principle

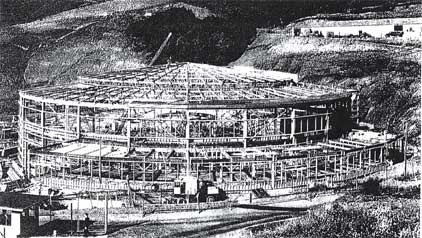

circular magnet room. Of particular beauty is the two-tier network
of steel trusses supporting the roof. These spread across the 220
foot span like radial spokes of a bicycle wheel. The floor to lower
roof truss measures 40 feet.
Building 51 is principally a steel-fabricated building. The huge outer
steel shell encases an interior, integrated, metal structure built
to support the accelerator and its heavy magnets. Because of the accelerator’s
role in cutting-edge particle physics research, the tendency is to
overlook the building itself and only focus on the importance of the
“machine or what it does”. It is this unique integration
of building and machine that makes the structure even more architecturally
significant and notable.
Building 51 and the Bevatron form a one-of-a-kind structure
that has no contemporary equal since most particle accelerators, like
that at Stanford, are built underground. It should be noted that the
Bevatron structure also includes a network of tunnels that access
the lower portion of the particle accelerator and its shielding.
Despite the many changes that have occurred in last forty years at
the Bevatron site, the principle circular magnet room, two-story office
and shop wing along the south side of the circle, as well as a large
mechanical building area, which is tangent to the circle, on the northeast
side of the circle, are still intact (fig. 44). (The interior areas
were not accessible to view.)
Building
51’s size of 126,000 gross-square-foot, clearly sets it apart
from almost all industrial buildings. Although this huge building
is not visible from the flatlands of central Berkeley, it can be easily
seen in the upper hill area. It has been suggested that the location
on the hill was selected because it is hidden. It’s more likely
that the hill location was selected simply to provide a big enough
area to hold Building 51 and the Bevatron’s activities.
The Bevatron facility and its location have a historic connection
with the Cyclotron: both date to the beginnings of this national laboratory.
Building 51’s conical, two-tiered, “china cap” roof
adds considerably to the simplicity of its architectural line. Now
covered with rock and gravel, the roof’s red color mimics terra cotta
tile from a distance. From the tip of the roof to the slab floor measures
68 feet. The space between the two roof sections also provides a ring
for ventilation louvers.
The gigantic, industrial appearance of the Bevatron
building is softened by the clerestory windows encircling the upper
portion of the principle magnet room. The clerestory windows create
a beautiful line around the building and contribute a major portion
of the natural lighting within this central work area. These windows
are metal-sashed panels, each holding a total of 24 lights (approximately
1ft. x 1 ft.) This natural light is also allowed to filter down through
the interior structure by a number of secondary skylight ports. The
exterior utilizes louvered ventilator panels for added air circulation.
The magnificent metal-framed structure, along with its exterior skin
of corrugated transite steel panels, adds even more to the building’s
strength and uniform appearance.
Seismic problems are of little concern for Building
51 since it is situated on a reinforced concrete slab that has undergone
a number of reinforcements since it was first constructed.
History
History as Addendum to the Historic American Engineering Record PUB-807,
HAER No. CA-186-A and Historic Architectural Evaluation Report of
the Bevatron and Bevalac , Lawrence Berkeley National Laboratory.
The
history of the Bevatron and Building 51 encompasses five decades,
beginning in 1954. In 1993, Building 51 was finally closed and the
Bevatron’s accelerator was abandoned in-place. The early history
of the Bevatron is the well-documented in the attached HAER including
the Bevatron’s early research work associated with four Nobel
prize winners and their important contributions in the research areas
of high-energy particle physics, heavy-ion nuclear physics, medical
research and therapy, as well as space-related studies of radiation
damage and heavy particles in space.
“The Bevatron was among the world’s leading
particle accelerators during a forty-year period from 1954 to 1993
and is associated with many significant contributions in the fields
of particle science and nuclear physics, thus helping to establish
American leadership in scientific research. In the late 1950’s
and early 1960s, four Nobel Prizes were awarded for particle physics
research conducted in whole or in part at the Bevatron” (Building
51).
Significance
Addendum to the Historic American Engineering Record , PUB-807, HAER
No. CA-186-A and Historic Architectural Evaluation Report of the Bevatron
and Bevalac, Lawrence Berkeley National Laboratory.
The physics research conducted at Building 51 and the
Bevatron are well known, even to those outside Berkeley and the science
world. Unquestionably,
the Bevatron was very significant in advancing the field of physics.
The idea of building the Bevatron came at a turning point for the
laboratory from that of its wartime mission and the success of the
Manhattan project. The Bevatron allowed this national laboratory to
build on its radiation research, thus fostering its growth. The Bevatron
facility also created an opportunity for use by outside qualified
scientists and engineers. As a “user facility”, the Bevatron
became an important part of the radiation laboratory and helped transform
the national laboratory’s mission into peacetime work.
The Bevatron is a scientific artifact of the past. It
reflects a time of “big science” and big ideas as well.
Building 51 and the Bevatron, unlike many important historic structures,
is still here to be viewed. It offers special insight to both the
science and the challenge that was met in the advancement of physics
in the latter half of the 20th century here in Berkeley.
The Bevatron, more than any other research facility
at the hill campus, has secured a place for the laboratory on the
national map and a great deal of federal funding. The City of Berkeley
and the University of California have both shared in this spotlight
created by the research accomplishments at the Bevatron. Perhaps,
without the Bevatron’s stellar research history, there might
not be a national laboratory on the hill today.
History is what happens. In Berkeley, it is hard to find a more significant
historic marker than the Bevatron. It should be preserved in its entirety
for science and for Berkeley.
Please note: Building 51 is eligible for listing
in the Historic American Engineering Record, which is included as
part of this application. It has also been accepted by the National
Park Service (NPS), and an American Building Survey is currently being
reviewed by NPS.
Bibliography |
- “Sharing our Research Tools”, LBL News Magazine, Vol.
9 Summer 1984.“A Historian’s View of the Lawrence Years”,
LBL News Magazine, J. L. Heilbron, Robert Seidel and Bruce R. Wheaton.
Fall 1981.
- Masten & Hurd , Architects
biography (City of Berkeley Landmarks Application for the U C
Press Building, Ordinance #4694 N.S., page 6.)
- Historic American Engineering Record PUB-807, HAER No. CA-186-A,
Department of Energy, Contract No. DE-AC03-76SF00098.
- Historic Architectural Evaluation Report of the Bevatron and Bevalac
, Lawrence Berkeley National Laboratory by Marjorie Dobkin and Micheal
Corbett (1994)
- Draft Environmental Impact Report for the Demolition
of Building 51 and the Bevatron. Lawrence Berkeley National Laboratory,
October 2005
- #1Historic
American Engineering Record PUB-807, HAER No. CA-186-A, Department
of Energy, Contract No. DE-AC03-76SF00098. Note: Report prepared
by present and former Berkeley Lab scientists and technical staff:
Edward J. Lofgren, William Brobeck, Harvey Syversrud, Richard
Gough, Lee Schroeder, Glen Lambertson, Gerson Goldhaber, Bill
Wenzel, Lynn Stevenson, Albert Ghiorso, Stan Curtis, and Joe Castro,
1997.
|
Building 51 is located in the Berkeley Hills (DIAGRAM
#1 and #2), and is part of the laboratory complex of the Lawrence
Berkeley National Laboratory. It was sited on slightly more than two
acres, just below the Cyclotron, which was the first of the Laboratory’s
hill buildings. These two buildings formed the core of the laboratory’s
physics research activities in postwar WWII. The work done at both
laboratory buildings has made this historic site known to many throughout
the world, especially to the scientific community. Source:
Demolition of Building 51 and the Bevatron, Lawrence Berkeley National
Laboratory, October 2005. Draft Environmental Impact Report.
|
|
DIAGRAM #2 Site
map of Building 51 and Bevatron. Source: Demolition of Building 51
and the Bevatron, Lawrence Berkeley National Laboratory, October
2005. Draft Environmental Impact Report.
|
|
DIAGRAM #3
A cross section drawing of Building 51 with roof detail. One of the most unique aspects of the Building 51 structure is its
design. The building was specifically tailored to house, what was
at that time (1954), the largest manmade machine: a particle accelerator.
As form often follows function, the Building 51 exterior structure
has the parallel shape, footprint and mass as the particle accelerator,
or synchrotron. This has contributed to the symmetry of the principle
circular magnet room. Of particular beauty is the two-tier network
of steel trusses supporting the roof. These spread across the 220
foot span like radial spokes of a bicycle wheel. The floor to lower
roof truss measures 40 feet. Source: Demolition
of Building 51 and the Bevatron, Lawrence Berkeley National Laboratory,
October 2005. Draft Environmental Impact Report.
|
Index to Photographs
L A Wood, Photographer, November 2005.
PLATE 1
1. EXTERIOR BUILDIING 51 AND UPPER WINDOWS
2. OVERHEAD VIEW OF BUILDING 51 ROOF SECTIONS.
3. OVERALL PHOTO OF BUILDING 51
4. CLERESTORY WINDOWS AS SEEN FROM INSIDE BUILDING 51
PLATE 2
5.STEEL ROLL UP DOORS, EXTERIOR VIEW OF BUILDING 51.
6. INTERIOR VIEW OF BEVATRON STRUCTURE WITH METAL SASH WINDOWS.
7. OVEREAD CRANE, INSIDE BUILDING 51
8. INTERIOR VIEW OF BEVATRON STRUCTURE SHOWING EXTERIOR
STEEL POST SUPPORTOF BUILDING 51
PLATE 3
9. OFFICE ENTRANCE TO BUILDING 51, SOUTHSIDE
10. DETAIL OF METAL SASH WINDOWS
11. VIEW OF SOUTHSIDE OF BUILDING 51
12. BUILDING 51 SITE, INCLUDING CYCLOTRON BUILDING
PLATE 4
13. VIEW OF BUILDING 51 WITH BAYS
14. BEVATRON SHIELDING BLOCKS (ca. 1997)
15.INTERIOR VIEW OF ROOF AND BEVATRON STRUCTURE.
16. EXTERIOR VIEW OF BUILDING 51 AND MECHANICAL ROOM
Note: The building owner, Department of Energy, was less than cooperative in giving access to the Bevatron. Applicant for the Bevatron was restricted to viewing the building from the outside only. It is recommended that those interested in seeing better photos should view the Library of Congress Historic American Buildings Survey/Historic American Engineering Record:Bevatron
|
|
